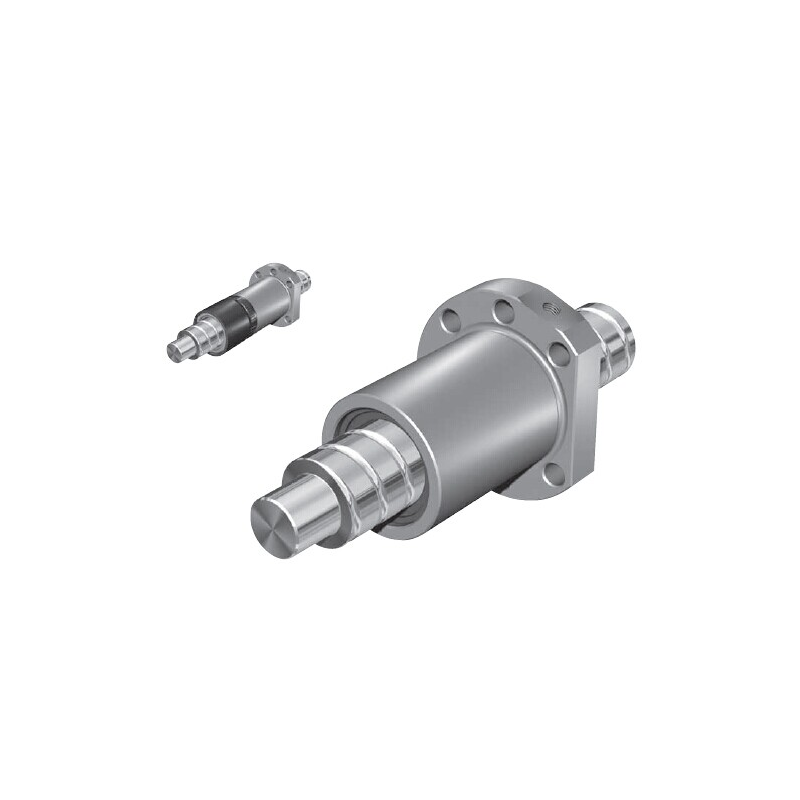

力士乐法兰式单螺母 FEM-E-S

rexroth力士乐-star法兰式单螺母  FEM-E-S

带标准密封

部分产品有左旋螺纹的款式

加强型密封参见第126页

带轴向间隙或缩减的轴向间隙 预紧2%，3%，5%

用于精密的滚压丝杠SN-R

公差等级T5，T7，T9

在安装调试时，前置润滑单元不要与其它部件触碰！

         规格                         部件号
8 x 2.5  R x 1.588-3      R153223003,REXROTH/STAR螺母
12 x 5  R x 2.5-3          R153246023,REXROTH/STAR螺母
12 x 10  R x 2-2           R153249013,REXROTH/STAR螺母
16 x 5  R x 3-4             R151201013,REXROTH/STAR螺母
16 x 10  R x 3-3           R151204013,REXROTH/STAR螺母
16 x 16  R x 3-2           R151206013,REXROTH/STAR螺母
20 x 5  R x 3-4             R151211013,REXROTH/STAR螺母
20 x 20  R x 3.5-2        R151217013,REXROTH/STAR螺母
25 x 5  R x 3-4             R151221013,REXROTH/STAR螺母
25 x 10  R x 3-4           R151224013,REXROTH/STAR螺母
25 x 25  R x 3.5-2        R151224013,REXROTH/STAR螺母
32 x 5  R x 3.5-4          R151231013,REXROTH/STAR螺母
32 x 10  R x 3.969-5     R151234013,REXROTH/STAR螺母
32 x 20  R x 3.969-2     R151237013,REXROTH/STAR螺母
32 x 32  R x 3.969-2     R151239013,REXROTH/STAR螺母
40 x 5  R x 3.5-5          R151241013,REXROTH/STAR螺母
40 x 10  R x 6-4           R151244013,REXROTH/STAR螺母
40 x 20  R x 6-3           R151247013,REXROTH/STAR螺母
40 x 40  R x 6-2           R151249013,REXROTH/STAR螺母
50 x 5  R x 3.5-5          R151251013,REXROTH/STAR螺母
50 x 10  R x 6-6           R151254013,REXROTH/STAR螺母
50 x16 R x6-6              R151256013,REXROTH/STAR螺母
50 x 20  R x 6.5-3        R151257013,REXROTH/STAR螺母
50 x 40  R x 6.5-2        R151259013,REXROTH/STAR螺母
63 x 10  R x 6-6           R151264013,REXROTH/STAR螺母
63 x 20  R x 6.5-3        R151267013,REXROTH/STAR螺母
63 x 40  R x 6.5-2        R151269013,REXROTH/STAR螺母
80 x 10  R x 6.5-6        R151274013,REXROTH/STAR螺母
80 x 20  R x 9-6           R151277013,REXROTH/STAR螺母
80 x 20  R x 12.7-6       R151277003,REXROTH/STAR螺母
100 x 10  R x 6.5-6       R150284002,REXROTH/STAR螺母
100 x 20  R x 12.7-6     R150287002,REXROTH/STAR螺母
120 x 10  R x 6.5-6       R150294002,REXROTH/STAR螺母
120 x 20  R x 12.7-6     R150297002,REXROTH/STAR螺母
