弹性联轴器

EK6 SERIES

10

20

60

150

300

450

800

2500

4500

9500

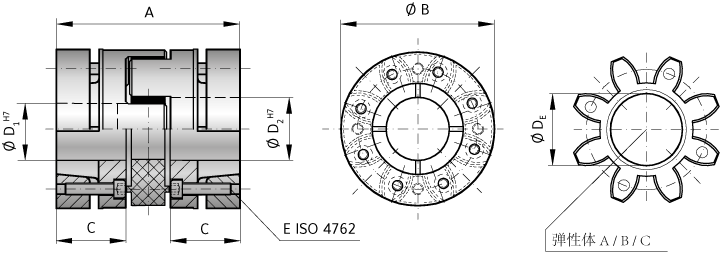

Type (Elastomer insert)

Rated torque (Nm)

T_KN

Max. torque (Nm)

T_Kmax

Overall length (mm)

A

42

56

64

76

96

110

138

177

227

282

Outside diameter (mm)

B/B₁

32

43

56

66,5

82

102

136,5

160/158

225/208

290

Mounting length (mm)

C

15

20

23

28

36

42

53

70

90

112

Inside diameter range H7 (mm)

D_1/2

6-16

8-24

12-32

19-35

20-45

28-55

32-80

40-95

50-130

60-170

Inside diameter range H7 (inch)

D_1/2

0.250"-
0.625"

0.313"-
0.875"

0.500"-
1.250"

0.750"-
1.375"

0.875"-
1.750"

1.125"-
2.125"

1.375"-
3.125"

1.600"-
3.700"

2.000"-
5.000"

2.400"-
6.500"

Inside diameter of elastomer (mm)

D_E

14,2

19,2

26,2

29,2

36,2

46,2

60,5

95

130

170

Clamping screw (ISO 4762)

E

3x M3

6x M4

4x M5

8x M5

8x M6

8x M8

8x M10

10x M10

10x M12

10x M16

Tightening torque of the
clamping screw (Nm)

E

2

3

6

7

12

35

55

60

100

160

Distance (mm)

F

51

66

80

Moment of inertia per Hub
(10^-3 kgm²)

J₁/J₂

0,004

0,015

0,05

0,1

0,3

0,85

9,2

31,7

135,7

469,2

Approx. weight (kg)

0,08

0,12

0,3

0,5

0,9

1,5

9,6

15

35

73

Speed standard (min^-1)

20.000

19.000

14.000

13.000

10.000

9.000

4.000

3.500

3.000

2.000

*Speed balanced (10³min^-1)

10

8

6,5
